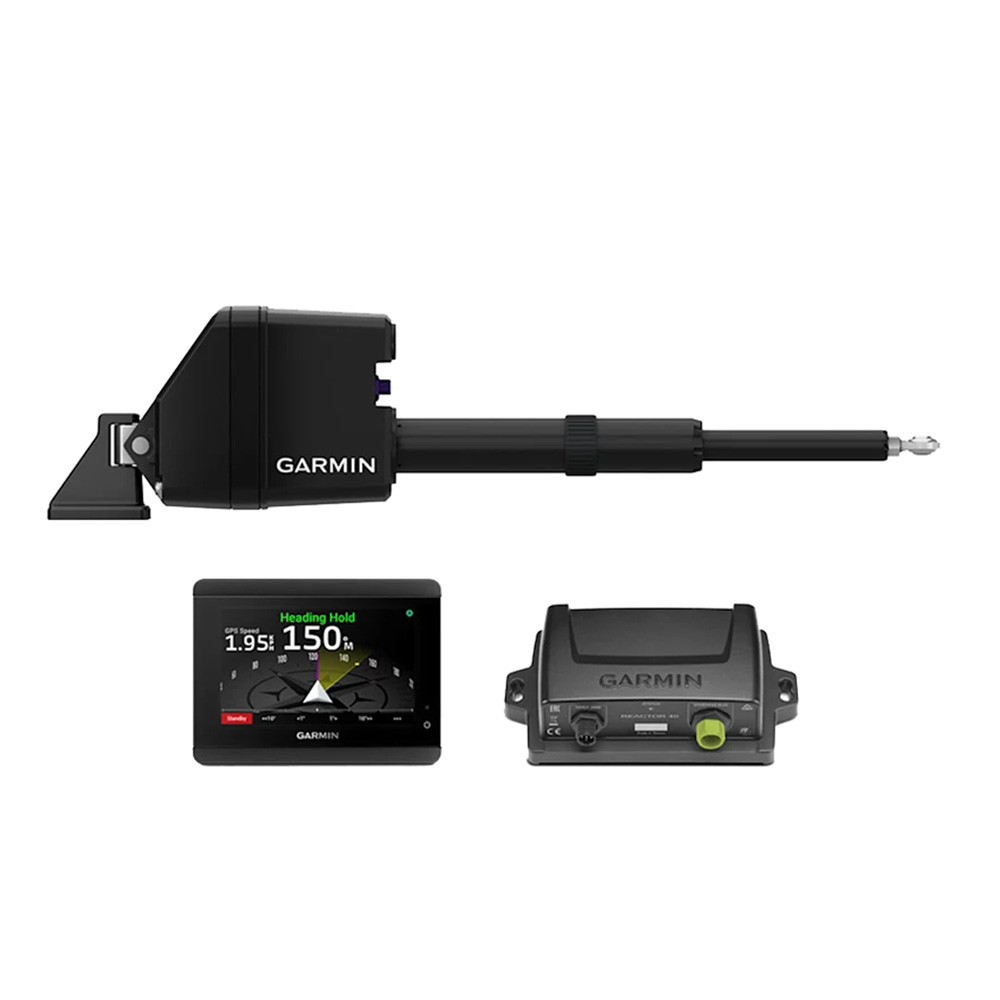

  • Garmin Reactor 40 Sail Corepack w\/SmartDrive GHC 50 Display [010-02794-11]

    • Garmin Reactor 40 Sail Corepack w/SmartDrive GHC 50 Display [010-02794-11]

    Garmin

    $4,999.99
    (No reviews yet) Write a Review
    SKU:
    BSM-115790
    MPN:
    010-02794-11

    Product Description

    Reactor™ 40 Sail Corepack with SmartDrive™ & GHC™ 50 Display

    The Reactor 40 sail corepack with SmartDrive actuator is the first sailboat autopilot to use a brushless linear actuator with a built-in ECU. Get precise rudder awareness with minimal mechanical wear.

    GHC 50 Display

    • A 5” touchscreen interface with a bright display. Call it navigating with a simple touch.
    • Sleek. That’s the look you get with the instrument’s edge-to-edge glass design.
    • Share settings with your Garmin MFDs, and watch your integrated system come to life.
    • From the Garmin Marine Network (GMN) to wireless connectivity1, there are many ways to connect to your autopilot.
    • Control your boat your way with wired or wireless remote-controlled options.

    Specifications:

    • Dimensions without sun cover (H x W x D): 4.13” x 5.51” x 2.01” (105 x 140 x 51 mm)
    • Dimensions with sun cover (H x W x D): 4.45” x 5.67” x 2.20” (113 x 144 x 56 mm)
    • Touchscreen: yes
    • Display resolution: 800 x 480
    • Display type: WVGA
    • Weight: 11.57 oz (328 g)
    • Water Rating: IPX7
    • Mounting options: Flat or flush
    • NMEA 2000 ports: 1
    • Garmin Marine Network ports: 1
    • ANT+ (Connectivity): yes
    • Garmin Wi-Fi Network (local connection): yes
    • Power input: 9 to 32 VDC
    • Typical current draw at 12 VDC: 220 mA
    • Maximum current draw at 12 VDC: 400 mA
    • Maximum power usage at 10 VDC: 4.9 W

    Course Computer Unit (Reactor™ 40)

    Our CCU is the brain of the Reactor 40 autopilot system, containing sensory equipment used to determine heading and rate of turn. Connect the CCU to the NMEA 2000® network to communicate with your GHC™ 20 and optional NMEA 2000-compatible devices.

    Specifications:

    • Dimensions: 3 19/32" diameter (91.4 mm)
    • Weight: 5.6 oz (159 g)
    • Temperature range: From -15 C to +55 C (5 F to 131 F)
    • Case material: Fully gasketed, high-impact plastic, waterproof to IEC 529 IPX7 standards
    • CCU cable length: 9.5 ft (3 m)
    • NMEA 2000® power input: 9-16 V
    • NMEA 2000 LEN: 3 (150 mA)

    SmartDrive™

    The Reactor 40 sail corepack with SmartDrive actuator is the first sailboat autopilot to use a brushless linear actuator with built-in ECU. Get precise rudder awareness with minimal mechanical wear.

    FITS YOUR VESSEL

    The brushless linear actuator is suitable for a wide range of sailboats and catamarans (up to 45 feet/maximum 33,000 lbs displacement).

    SMARTDRIVE ACTUATOR

    This product is the first sailboat autopilot to use a brushless DC motor with a built-in ECU to provide superior performance and simplified installation.

    SOLID-STATE 9-AXIS AHRS

    You can mount the Reactor 40 CCU nearly anywhere, in any orientation.

    WATER CONDITION REACTIONS

    This autopilot reacts to sea conditions so you can sail with confidence — when pitching or rolling.

    CALIBRATE WITH EASE

    Reactor 40 makes commissioning and calibrating quick and easy.

    Specifications:

    • Drive unit type: Mechanical linear
    • Maximum boat displacement: 33,000 lbs (15,000 kg)
    • Stroke length: 12" (300 mm)
    • Maximum thrust (adjustable software setting): High: 1050 lbs (476 kg), Medium: 600 lbs (272 kg), Low: 400 lbs (181 kg)
    • Dimensions, including base, mid-stroke (WxHxD): 4.5" x 7.75" x 27.6" (114 x 197 x 700 mm)
    • Weight: 19.8 lbs (9 kg)
    • Supply voltage: 10 to 32 Vdc
    • Average typical current at 12 V: 0.8 to 5 A, depending on conditions
    • Peak momentary current: 25 A
    • Lock-to-lock time: 11 seconds
    • Operating temperature: -20° to 55° C (-4° to 131° F)
    • Water ingress: IPX7

    In The Box:

    • Reactor™ CCU (course computer unit)
    • SmartDrive™ actuator
    • GHC™ 50 display
    • Buzzer
    • Power cables
    • 2 m backbone/drop cable, T-connectors, power cable, and terminators for the NMEA 2000® network
    • Mounting hardware
    • Documentation


    Brochure (pdf)

    Product Videos

    Custom Field

    MPN 010-02794-11
