  • Airmar B117 Traditional\/CW ThruHull 50\/200kHz, 600W, Transducer, 9-Pin, DT f\/Simrad, Lowrance BG [B117-DT-9N]

    • Airmar B117 Traditional/CW ThruHull 50/200kHz, 600W, Transducer, 9-Pin, DT f/Simrad, Lowrance BG [B117-DT-9N]

    Airmar

    MSRP: $359.99
    $319.99
    (You save $40.00 )
    (No reviews yet) Write a Review
    SKU:
    BSM-97557
    MPN:
    B117-DT-9N

    Product Description

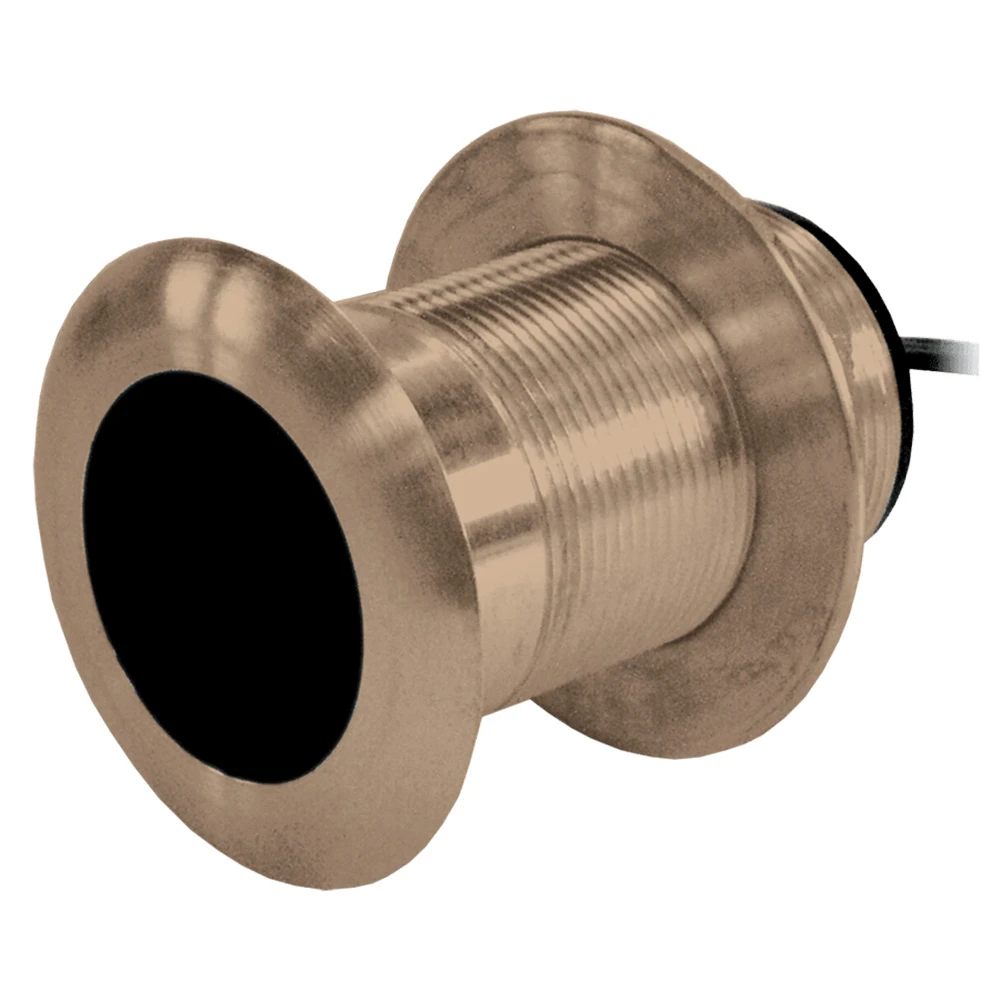

    B117 Traditional/CW Thru-Hull 50/200kHz, 600W, Transducer, 9-Pin, DT for Simrad, Lowrance & B & G

    The B117 features a 50/200 kHz, dual-frequency, single, ceramic element in a low-profile bronze housing. The nearly-flush design minimizes drag with only 5 mm (3/16") extending outside of the hull.

    Features:

    • Depth only or depth and temperature
    • 600 W
    • Dual-frequency element: 50 kHz with a wide 45° beamwidth for performance to 353 m (1,200'), 200 kHz with a 12° beamwidth for performance to 206 m (700')
    • Right-angle cable exit saves space and protects the transducer if stepped on
    • Included rubber washer allows tightening of the hull nut to irregular hull surfaces
    • Low-profile, bronze housing has minimal drag
    • Plastic P319 and stainless steel SS60 models are also available to accommodate all hull materials and deadrise angles

    Specifications:

    • Weight: 0.9 kg (2.0 lb.)
    • Recommended Boat Length: Up to 8 m (25')
    • Hull Material: Fiberglass or wood
    • Hull Deadrise: Best performance through 7°. Can accommodate up to 12°.
    • Acoustic Window: Urethane
    • Hole Diameter: 51 mm (2")
    This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.


    Brochure (pdf)

    Product Videos

    Custom Field

    MPN B117-DT-9N
