Product Description

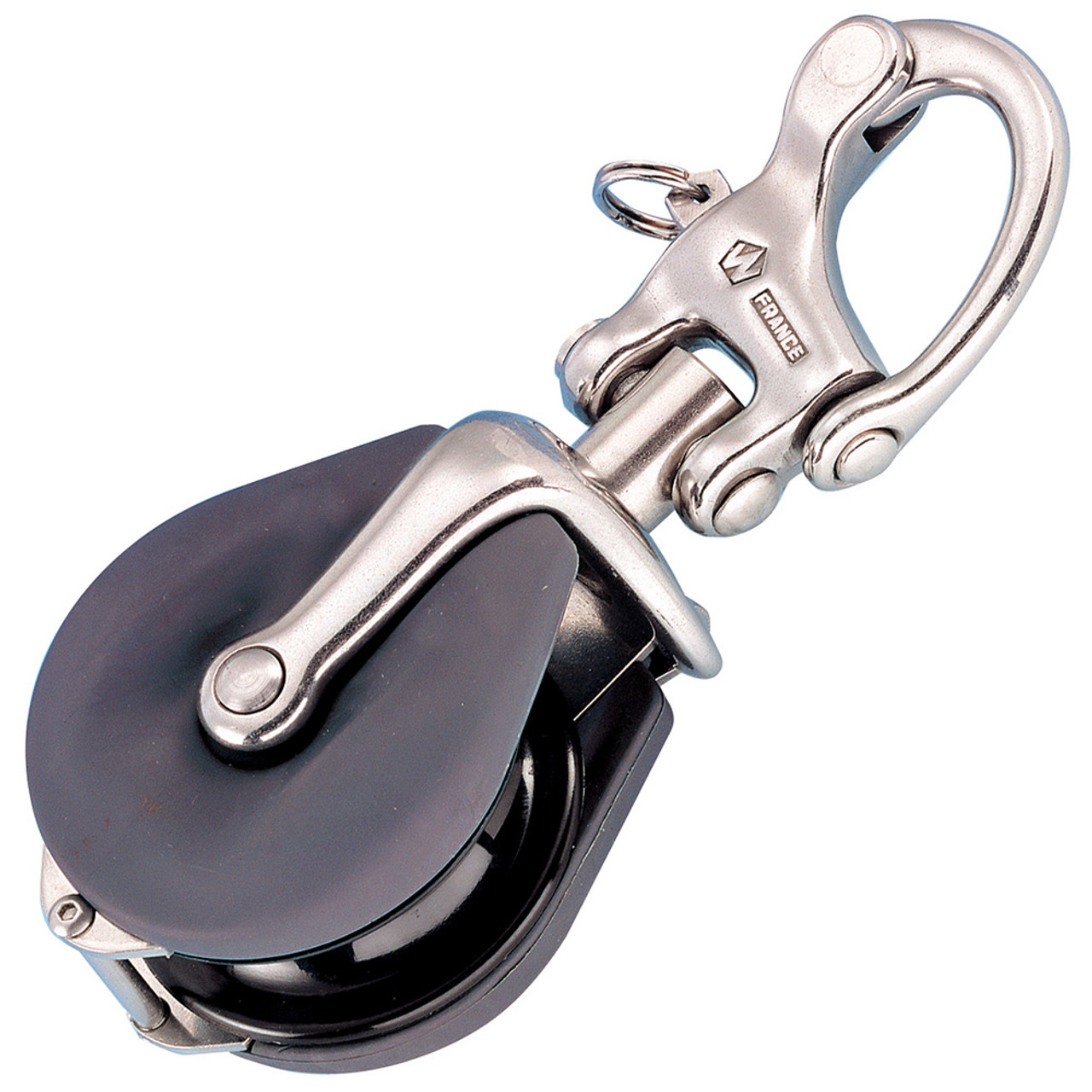

Snatch Block with Snap Shackle - Max Rope Size 12mm (15/32")
Features:
- Free rotation thanks to snap shackle
- Very strong closing system
- Easy opening by simply pulling on the plunger pin
- Shock and scratch-resistant thanks to the elastomer molded cheeks
Applications:
- Changing sheets
- Spinnaker sheet deflector blocks
Materials:
- HR 17.4 PH forged stainless steel arm
- Elastomer molded cheeks
- Composite sheave
Specifications:
- Rope size: (inch) 15/32" / (mm) 12
- Length: (inch) 5 45/64" / (mm) 145
- Width: (inch) 2 21/64" / (mm) 59
- Thickness: (inch) 1 11/16" / (mm) 43
- Working Load: (lb) 1580 / (kg) 720
- Breaking Load: (lb) 2860 / (kg) 1300
- Weight: (lb) 0.56 / (g) 254
Caption:
- Working Load (WL): For nautical applications
- Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5
*Sold as an Individual
Quick Guide (pdf)
Product Videos
Custom Field
MPN 34500
