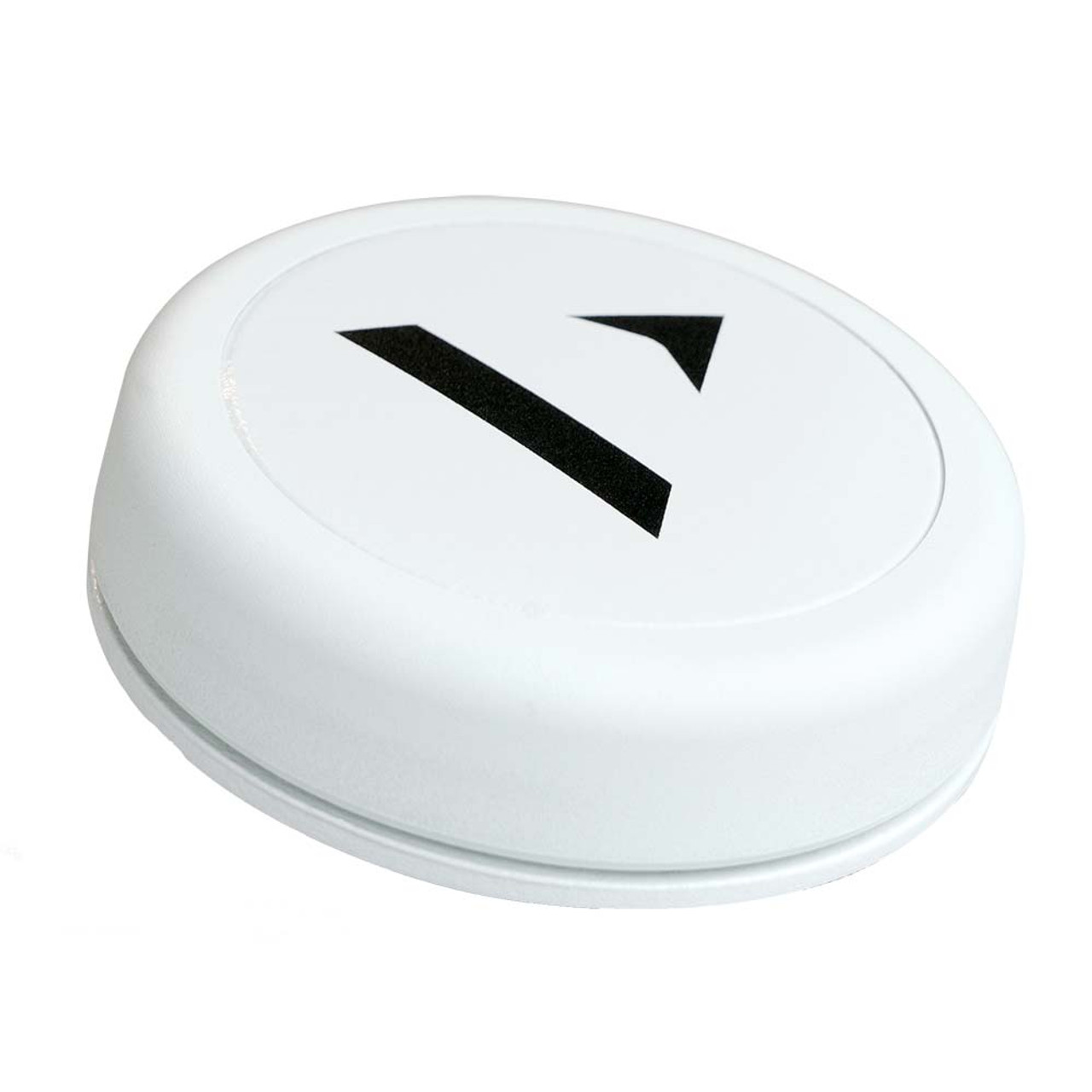

  • Veratron GO GPS PLUS Receiver [B00041701]

    • Veratron GO GPS PLUS Receiver [B00041701]

    Veratron

    MSRP: $270.40
    $243.36
    (You save $27.04 )
    (No reviews yet) Write a Review
    SKU:
    BSM-87782
    UPC:
    7640178729445
    Width:
    3.00 (in)
    Height:
    3.00 (in)
    Depth:
    4.00 (in)
    MPN:
    B00041701

    Product Description

    GO GPS PLUS Receiver

    All your boat’s data is close to your fingertips. Veratron GO is NMEA 2000® certified and features an integrated GPS/GLONASS/GALILEO receiver. Compact and easy to install, it does not require any additional protection against harsh weather conditions.  One of the smallest GPS receivers available.

    The Veratron GO GPS Receiver works in conjunction with the Veratron Go Data.

    The "Plus+" variant expands the device with a Bluetooth Low Energy interface which allows you to visualize all the vessel data on your portable devices like smartphones or tablets.

    Features:

    • 72 channel receiver
    • Fast cold-start position fix
    • Compatible with OceanLink 52MM Bezels
    • 10Hz update rate
    • Up to 3 concurrent GNSS systems (GPS, GLONASS, and GALILEO)
    • SBAS – WAAS/EGNOS/MSAS/GAGAN supported
    • NMEA 2000 standard PGNs transmitted for position, time, speed, and heading
    • Front-end SAW band-pass filter for enhanced immunity against electrical noise
    • Interchangeable bezel option

    Technical Specifications:

    • Update Rate: Up to 10Hz  using concurrent GNSS, up to 18Hz using single GNSS
    • Position Fix Time: 26 second  cold-start, 1 second hot start
    • Tracking Sensitivity:  -165dBm
    • Position Accuracy: 2.5m
    • Velocity Accuracy: 0.05m/s
    • Heading Accuracy: 0.3°
    • Water Resistance: IPX7
    • Dimensions (D x H): 60.7 mm x 18.9 mm
    • Power Source: NMEA 2000 backbone (12V nominal voltage), no external power supply required
    • Power Consumption: 100mA (2 LEN) operational, 150mA (3 LEN) during startup

    In the Box:

    • GO GPS Plus Receiver
    • Instructions Manual

    *Sold as an Individual

    This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

    Specifications:

    • Color: White
    • Diameter (mm): 60.7
    • Box Dimensions: 3"H x 3"W x 4"L WT: 0.5 lbs
    • UPC: 7640178729445

    Quick Guide (pdf)
    Owner's Manual (pdf)
    Brochure (pdf)
