  • Raymarine CAM210 Day & Night IP Marine Bullet Camera [E70346]

    • Raymarine CAM210 Day & Night IP Marine Bullet Camera [E70346]

    Raymarine

    $914.99
    (No reviews yet) Write a Review
    SKU:
    BSM-61740
    UPC:
    723193813263
    Width:
    5.00 (in)
    Height:
    4.00 (in)
    Depth:
    10.00 (in)
    MPN:
    E70346
    Adding to cart… category.add_cart_announcement

    Product Description

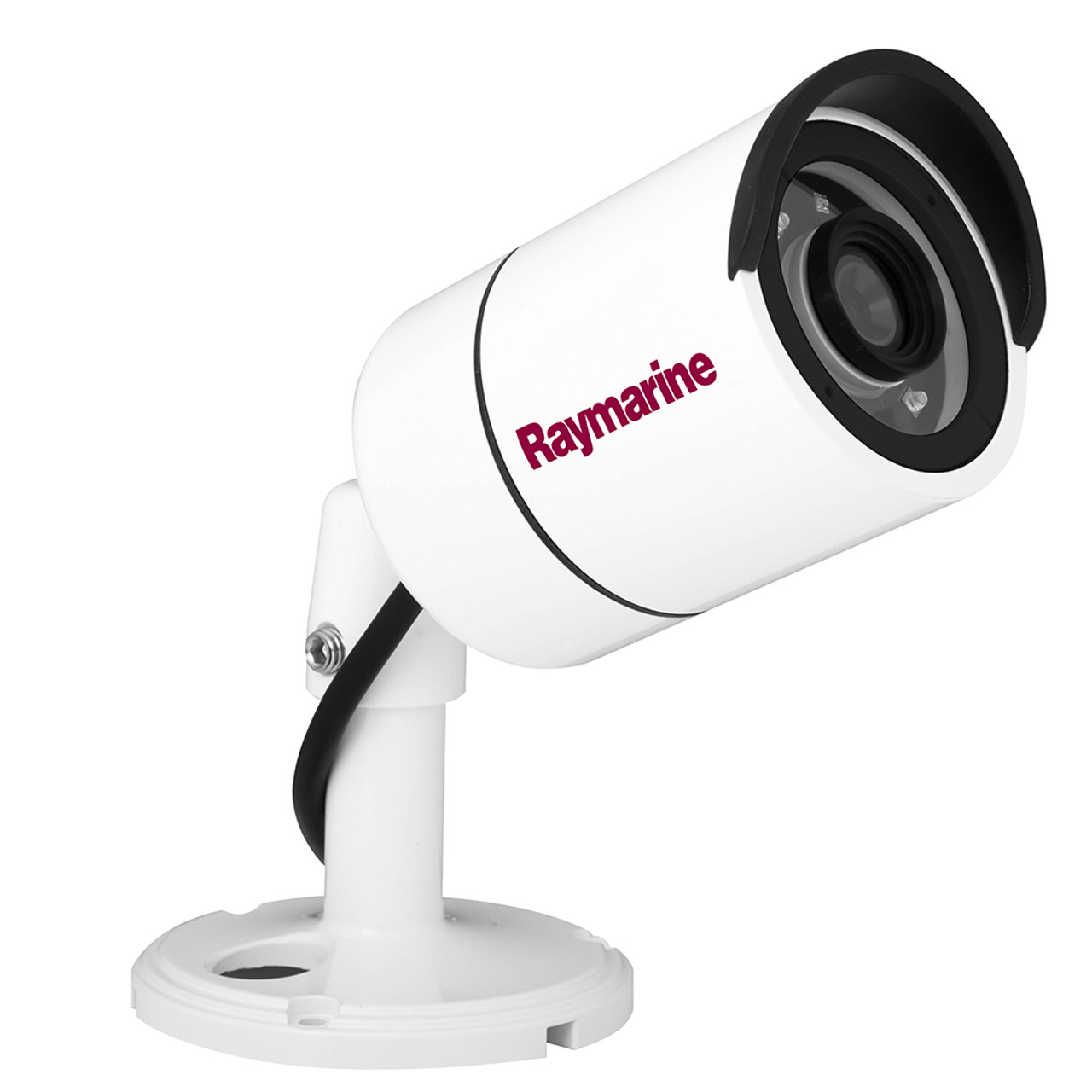

    CAM210 Day & Night IP Marine Bullet Camera

    Ruggedised, High Definition, Day and Night network bullet video camera suitable for all above deck applications. Integrated sun-cover for maximum visibility and small frame size for easy installation anywhere on the boat.

    • Plug and play integration with Raymarine MFD's running Lighthouse II
    • Power over Ethernet (PoE) or direct 12V DC power supply
    • High bright IR LEDs for operation in total darkness
    • Digital Defog processing improves the captured image in poor weather conditions (such as smog, fog or smoke)
    • Intelligent IR technology for clear video images at night in all conditions

    Specifications:

    • CPU: 32-bit ARM9 RISC CPU up to 432MHz
    • Flash / SDRAM: 128MB / 128MB
    • Image Sensor: 2.0 Megapixel 1/2.8" SONY progressive scan CMOS(Exmor)
    • Total Pixels: 1952(H) x 1116(V) 2.18 Megapixel
    • Effective Pixels: 1944(H) x 1104(V) 2.15 Megapixel
    • S/N Ratio: More than 50dB
    • Minimum Illumination: 0Lux (IR On)
    • IR Distance: 20M
    • Day & Night: ICR
    • Lens: 6.0mm Megapixel Board Lens
    • Field of View:
      Diagonal = 63.6° +/- 3°
      Horizontal = 53.3° +/- 3°
      Vertical = 33.1° +/- 3°
    • Video Compression: H.264 High Profile@4.0, MJPEG Image quality: 3 Steps
    • Resolution: Up to 1920 x 1080 (Full HD)
    • Frame Rate: H.264 Up to 30fps with 1920x1080 | MJPEG Up to 30fps with VGA resolution
    • Video Streaming:
      Support multi stream with H.264, MJPEG
      Adjustable frame rate
      CVBR/CBR in H.264
    • Pan / Tilt / Zoom: Digital Pan, Tilt and Zoom
    • Image Setting:
      Day & Night
      Auto White Balance
      Auto Exposure
      Privacy Mask
      Effects - Color, Sharpness, Mirror / V-Flip
    • Security: Password protection, User access log, HTTPS encryption
    • Supported Protocol: HTTP, HTTPS, FTP, SMTP, UPnP, DNS, DDNS, NTP, RTSP, RTP, TCP, UDP, ICMP, DHCP
    • Intelligent Video: Motion detection up to 1920x1080 with 4x3 blocks
    • Power Source: DC12V/1.5A, PoE(Power over Ethernet): 802.3af
    • Power Consumption: Max. 3.3W, Max. 5.3W with IR
    • Net Weight: 900g
    • LED's: Power, Network Connection
    • Dimensions: 83.8mm(W) x 155mm(H) x 178.1mm(D) including Bracket
    • General Operation Temperature: 0°40° Celsius(32F104F)
    • Storage Temperature: -10°50° Celsius(14F122F)
