Product Description
DT Deutsch Plug Repair Kit - 14-18 AWG (12 Position)
Pacer's DT repair kits use the larger size 16 contacts (Deutsch Pin P/N 0460-215-16141, Socket P/N 0462-209-16141) for applications using 14 AWG wires. However, DT series connectors are designed for 20-14 wire gauge applications. The DT series offers electrical designers the ability to use multiple sizes of 16 contacts (20-14 AWG) each with a 13-amp continuous capacity, within a single shell. Pacer also sells these other components for use in a wider range of applications.
Features:
- Packs include all parts needed to assemble a connector
- One to two extra terminals
- Cavity plugs to seal open circuits
Applications:
- Wire-to-wire applications
- Enclosed connectors offer field-proven reliability and rugged quality
Compliances:
- Ingress Protection (IP) Level: IP68 and IP6K9K
- EU RoHS/ELV
- Standard UL-94 Recognized
Characteristics:
- Wedge locks ensure contact alignment and retention
- Redundant Silicone Seals
- Hand-insertable and removable contacts
Technical Specifications:
- Number of Cavities: 12
- Housing: Rectangular receptacle, plastic reinforced with glass fiber
- Contact Size: 16 (13 amp)
- Wire Size: 14 AWG
- Holds Pin/Socket: Sockets
- Operating Temperature: -55°C to 125°C
Contents:
- (1) 12 pos. plug
- (1) 12 pos. wedge lock
- (14) sockets
- (6) cavity plugs
Quick Guide (pdf)
Product Videos
Custom Field
MPN TDT06F-12RS
![Pacer DT Deutsch Plug Repair Kit - 14-18 AWG (12 Position) [TDT06F-12RS]](https://cdn11.bigcommerce.com/s-fzexhren17/images/stencil/500x659/products/19645/25605/102506XL__29404.1758888092.jpg?c=1 "Pacer DT Deutsch Plug Repair Kit - 14-18 AWG (12 Position) [TDT06F-12RS]")
![Pacer DT Deutsch Plug Repair Kit - 14-18 AWG (8 Position) [TDT06F-8RS]](https://cdn11.bigcommerce.com/s-fzexhren17/images/stencil/500x659/products/19644/25604/102505XL__79281.1758888090.jpg?c=1 "Pacer DT Deutsch Plug Repair Kit - 14-18 AWG (8 Position) [TDT06F-8RS]")
![Pacer DT Deutsch Plug Repair Kit - 14-18 AWG (4 Position) [TDT06F-4RS]](https://cdn11.bigcommerce.com/s-fzexhren17/images/stencil/500x659/products/19642/25602/102503XL__80470.1758888085.jpg?c=1 "Pacer DT Deutsch Plug Repair Kit - 14-18 AWG (4 Position) [TDT06F-4RS]")

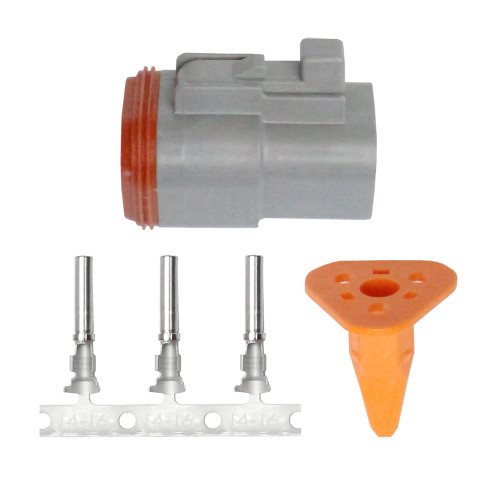

![Pacer DT Deutsch Plug Repair Kit - 14-18 AWG (3 Position) [TDT06F-3RS]](https://cdn11.bigcommerce.com/s-fzexhren17/images/stencil/500x659/products/19641/25601/102502XL__66316.1758888082.jpg?c=1 "Pacer DT Deutsch Plug Repair Kit - 14-18 AWG (3 Position) [TDT06F-3RS]")
