  • Maxwell HRC 10-8 Rope Chain Horizontal Windlass 5\/16" Chain, 5\/8" Rope 12V, with Capstan [HRC10812V]

    • Maxwell HRC 10-8 Rope Chain Horizontal Windlass 5/16" Chain, 5/8" Rope 12V, with Capstan [HRC10812V]

    Maxwell

    MSRP: $3,599.00
    $2,879.20
    (You save $719.80 )
    (No reviews yet) Write a Review
    SKU:
    BSM-59010
    UPC:
    1000000002683
    Width:
    17.00 (in)
    Height:
    12.00 (in)
    Depth:
    19.00 (in)
    MPN:
    HRC10812V
    Adding to cart… category.add_cart_announcement

    Product Description

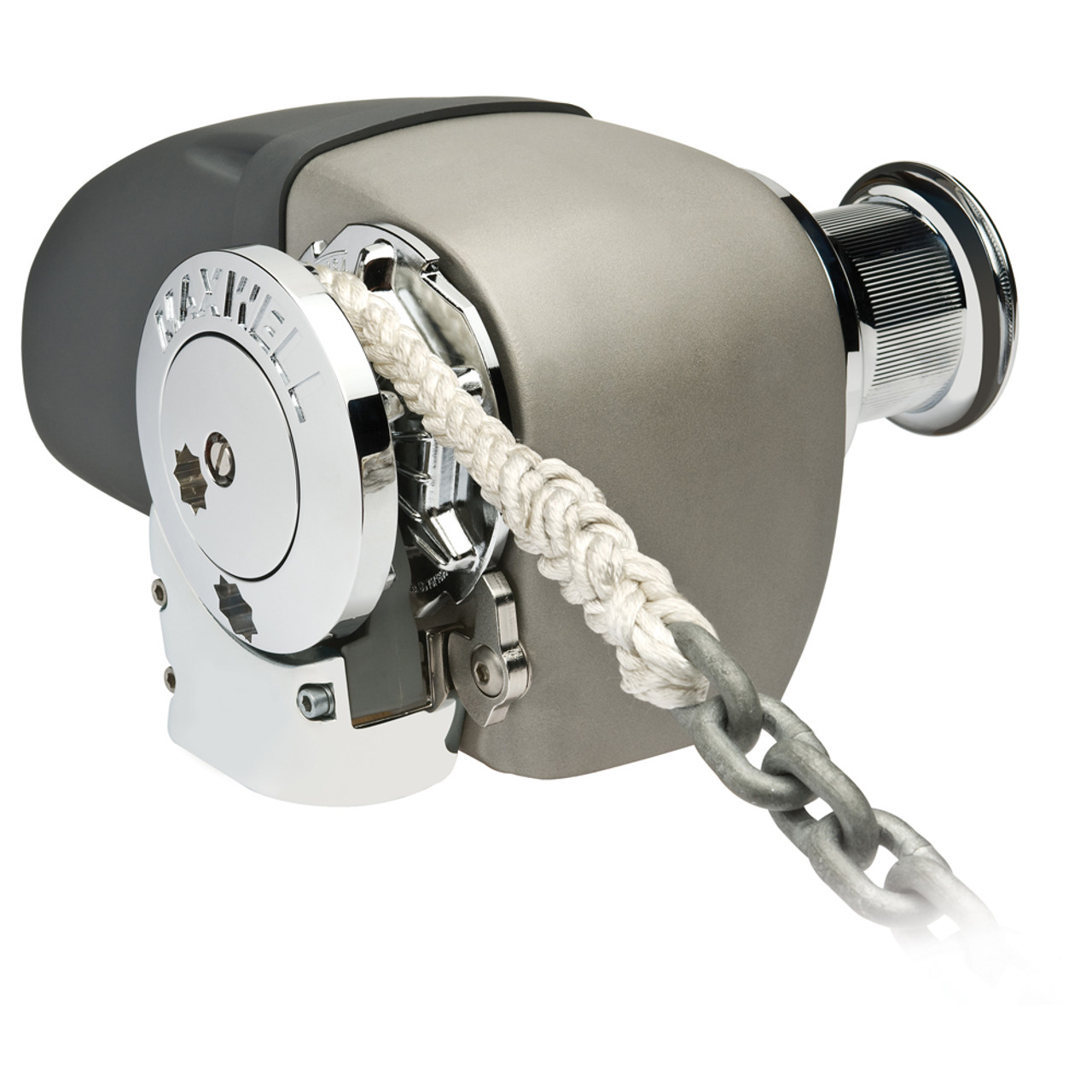

    HRC 10-8 Horizontal Windlass 5/16" Chain, 5/8" Rope, 12V, with Capstan

    Designed for boats up to 45 feet, the HRC10-8 Horizontal Series windlasses proudly follow in the highly successful footsteps of Maxwell's previous, fully automatic rope / chain anchor winches.

    Kit Includes

    • Windlass
    • On/Off Breaker Panel
    • Reversing Solenoid
    • Up/down Panel Switch
    • Clutch Release Handle


    Features

    • The HRC10-8 is Maxwell's fully automatic rope/ chain or all chain horizontal windlass
    • Designed to effortlessly retrieve and deploy 8mm (5/16" ) chain and 16mm (5/8" ) three strand or 8-brait (plait) rope.
    • The HRC 10-8 has a patented uniquely designed chain wheel will accommodate ANY 5/16" or 8 mm marine grade chain spliced to 5/8" rope.
    • The aesthetically pleasing above deck design, evolved from the philosophy of form follows function, encapsulates the motor and drive in a two part watertight case, saving space below deck
    • Case Material: Anodized Aluminum
    • The two part case consists of a die cast, marine-grade hard anodised alloy front section and a rugged and easily removable composite motor cover aft section.
    • This two piece watertight case allows for quick and easy, on-deck,routine maintenance.
    • Simple " bolt down" installation ensures effortless and rapid on-deck installation and set up.
    • The stainless steel pressure arm always exerts maximum control pressure on the rode (rope, splice or chain).
    • The new and revolutionary patented Wave Design chainwheel is able to accommodate a wide range of chain pitch differences, within the specified chain size diameters, suitable for use with the HRC10 Series.
    • The unique Maxwell " wrap around" horizontal chainwheel ensures that more than 90x of the wheel is used, allowing greatly improved rope and chain handling compared with competitor designs.
    • High quality Stainless Steel chainwheels
    • The HRC10 works just as effectively with all-chain rodes for those who desire the added security and holding power of an all-chain anchor system.
    • The integral chain pipe and huge, through deck hawse pipe throat ensures easy entry of the rope / chain rode into and out of the anchor locker.
    • Cone type clutch/brake mechanism permits manual, "free fall" anchoring and emergency crank recovery of the rode and anchor if required.
    • The sealed oil bath and marine-grade hard anodised, alloy gearbox provides high efficiency output drive via precision worm and wormwheel.
    • Exclusive Maxwell 3 YEAR Limited Warranty


        • Specifications

        • Maximum PUll: 1540 lbs
        • Chain Short Link: 5/16" or 8mm
        • Chain Speed (Anchor Retrieval): 79 ft per Minute
        • Rope Speed (Anchor Retrieval): 65 ft per Minute
        • Rope Size (Nylon 3 strand or 8 Plait): 5/8"
        • Power Supply (DC): 12VDC
        • Motor Power: 1000 Watts
        • Net weight: 42 lbs
        This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

        Specifications:

        • Chain - Diameter (Inches): 5/16"
        • Freefall: Yes
        • Rope Diameter (Inches): 5/8"
        • Vertical/Horizontal: Horizontal
        • Box Dimensions: 12"H x 17"W x 19"L WT: 56 lbs
        • UPC: 1000000002683
