Product Description
OnBoard™ Wireless MOB/Engine Cutoff System
TAG WHAT MATTERS
Built so you can move freely and boat confidently, the Garmin OnBoard system uses wireless tags instead of traditional tethered cords — integrating with your compatible Garmin chartplotter.
- Tags are worn on the wrist, a carabiner, or a key ring float
- Tags are designated as either captain or passenger
- Set the MOB tag as captain to enable engine cutoff
- Temporarily unprotect tags with ease
- The GOS 10 hub includes a loud external alarm
- The tag battery life exceeds a season of typical use
Captain Tag
Captain MOB detection will trigger engine cutoff, a MOB waypoint on the chartplotter, and an audible alarm on the MFDs and hub.
Wireless: No Strings Attached
The wearable MOB tags are part of a wireless MOB system - letting you move untethered while still being monitored.
Passenger Tag
Passenger MOB detection will trigger a MOB waypoint on MFDs plus an audible alarm on the MFDs and hub.
Engine Cutoff System
Should a captain tag trigger an MOB event, the system will cut power to the engines - letting the captain return to the vessel.
Captain or Passenger Tags
Through the Garmin chartplotter interface, you can designate each tag as either captain or passenger — changing their MOB action.
Waypoints

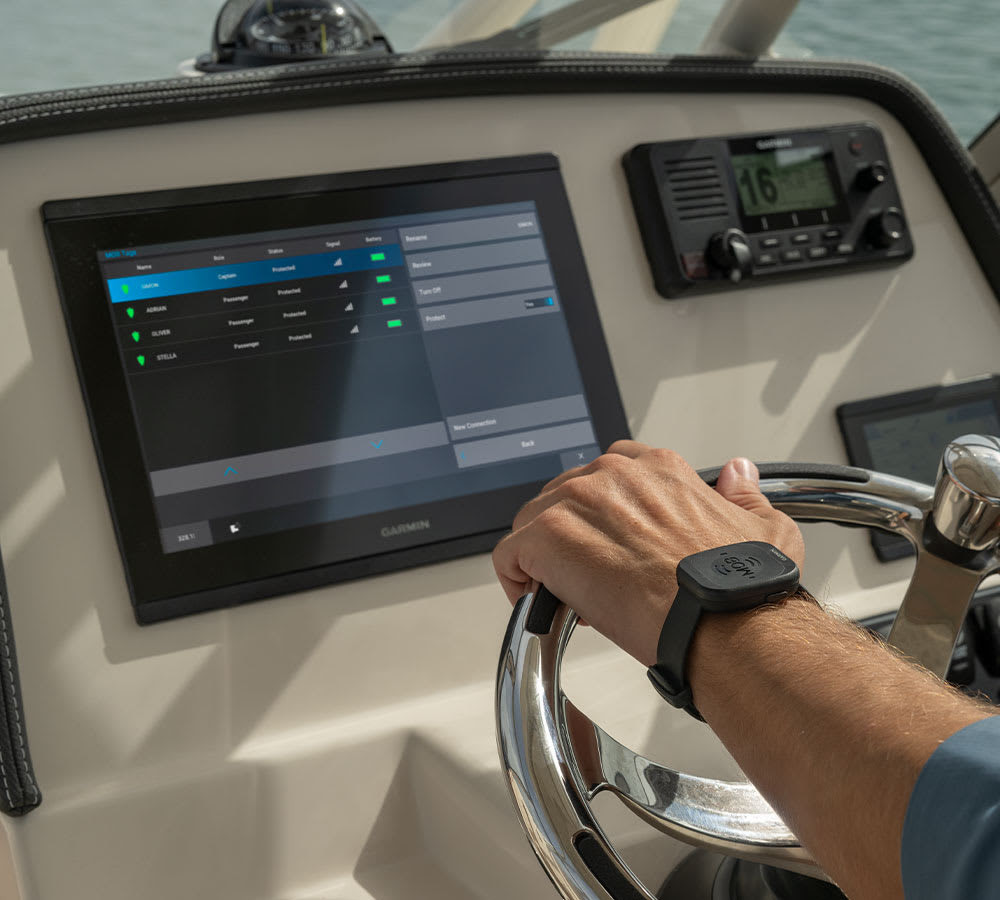

When paired to your compatible Garmin chartplotter, a waypoint will be marked at the location where the MOB tag lost connection with the vessel.
Audio Alarm
The GOS 10 hub includes a loud external alarm — alerting you to a MOB event.
Pair Multiple Tags
Provide peace of mind for up to 8 tags at a time.
Vast Compatibility
This product will work with any boat that has an engine cutoff switch.
What's In The Box?
- GOS™ 10 Hub
- 12-pin fused power and engine cut-off harness with external buzzer
- External antenna for wireless connection to MOB tags
- NMEA 2000® tee and 6 ft drop cable
- White wireless MOB tag
- CR2032 coin cell battery
- White 20 mm quick-release band
- Carabiner with 20 mm quick-release attachment
- Floating foam keychain
- Installation hardware
- Documentation
Specifications:
General:
- Number of tags supported: 8 simultaneous passengers and captains
- User Interface: Compatible Garmin Chartplotter
- MOB Alarm: External beeper and MFD alert
- Engine cutoff: Yes
- View MOB details on MFD: Yes
- View tag status on MFD: yes (battery life, signal strength, protection status)
- Manage tags on MFD: yes (arm/disarm, captain/passenger)
- Wireless engine kill: Yes
GOS™ 10:
- Dimensions (HxWxD): 91.55 mm x 155.12 mm x 48.47 mm
- Weight: 171.7 g
- Wireless range: 66 ft (up to 20 m)
- Supply voltage range: 10-32V
- Operating temperature range: -15 °C to 70 °C
- Typical power consumption: 50mA @ 12 V or 0.6 W
- NMEA 2000 LEN®: 1
- Engine compatibility: Inboard, outboard, sterndrive from all major manufacturers
- Engine interface: Hardwired, in-line connection to ignition harness
- Number of engines supported: Up to 4 close-to-stop or 2 open-to-stop engines
- Water rating: IPX6 and IPX7
- Compass-safe distance: 5 cm
MOB Tag:
- Dimensions (HxWxD): 43.94 mm x 38.60 mm x 11.96 mm
- Weight: 21.5 g
- Wireless range: 66 ft (up to 20 m)
- Battery type: CR 2032 coin cell
- Battery life: > 1,200 hours of connected time
- View tag status on MFD: yes (battery life, signal strength, protection status)
- Water rating: IEC 60529 IPX8 (5 ATM)
- Attachment: Wrist strap or carabiner
Owner's Manual (pdf)
