Name: Garmin GPSMAP 9010 Premium Chartplotter w/Worldwide Basemap [010-03175-00]
Brand: Garmin
SKU: BSM-111318
Price: 3199.99 USD
Availability: OutOfStock

Overview
Reviews

Product Description

GPSMAP® 9010 Premium Chartplotter with Worldwide Basemap

PARADISE STARTS HERE

It’s the integrated high-resolution touchscreen chartplotter for captains and anglers who demand the best. Enjoy edge-to-edge clarity and luxury on a glass helm with premium design and materials.

Features:

Premium IPS sunlight-readable touchscreen display
Up to 7 times faster processing power than previous generations
Get clarity like never before on a high-resolution display
Supports Garmin Navionics+™ charts with Auto Guidance+™ technology¹
Gigabit speeds on the Garmin Bluenet™ network
Network with multiple chartplotters, cameras, and more

Premium Chartplotter

The HD IPS sunlight-readable touchscreen display and edge-to-edge design provide a seamless and luxurious modern look.

Faster. Much Faster.

Processing power is 7 times faster than previous generations for superior performance; draw charts quickly, and calculate Auto Guidance+ routes¹ with lightning speed with an optional Garmin Navionics+ subscription.

Garmin Bluenet Network

Build extensive networks with multiple chartplotters, cameras, radars, and sonars — and enjoy gigabit-speed

Entertainment Options

Enjoy audio and video integrations that allow you to show and hear the same video throughout the screens and speakers on your network.

Garmin Sailassist™ Sailing Features and Sailing Polars

View laylines, race start line guidance, enhanced wind rose, heading and course-over-ground lines, true wind data fields and tide/current/time slider, and more. Plus, the polar table shows key data, so you know whether you need to adjust sail trim.

Connect Your Ecosystem

Take command through digital system integrations to monitor, automate, and control your vessel. The chartplotter uses the NMEA 2000® network to connect to your compatible accessories.

Connect

Software Updates: Get wireless software updates via the ActiveCaptain® app with your compatible smartphone or tablet.
Engine Monitoring: Keep tabs on engine performance with extensive engine integration.
Custom Look: Manufacturers can customize the homepage layout and splash screen for a brand-tailored experience.

Navigate

Mapping: Navigate with optional Garmin Navionics+ charts that include Auto Guidance+ technology, daily updates, and more¹ (subscription required).
Premium Charts: Get support for Garmin Navionics Vision+™ charts with premium relief shading and satellite imagery.
Know Where You Are: Get your precise location with the built-in dual-frequency 10 Hz GPS.
Autopilot: Control the autopilot with any compatible chartplotter on the network with autopilot integration.

Integrate

Connect Cameras: Get extensive camera support and control to see footage directly on the chartplotter.
Control with Your Watch: Connect to your chartplotter with your compatible Garmin smartwatch.
Wireless Connectivity: Connect compatible devices with integrated Bluetooth® and ANT® technologies.
Fish Mapping: Get comprehensive fishing data with the Fish Mapping™ feature from SiriusXM® Radio (accessory purchase and subscription required).
Verbal Commands: Use spoken commands to control the chartplotter through your compatible headset or quatix® smartwatch.
Weather-Resistant:
The GPSMAP 9000 chartplotter is built for harsh marine conditions with an IPX7 water-resistance rating.

What's In The Box?

GPSMAP 9010 premium chartplotter
Power cable
Backbone/drop cable (2 meters) and T-connector for the NMEA 2000® Network
Bail mount with knobs
Flush mount kit
Protective cover
Trim piece snap covers
Documentation

Specifications:

General:

Dimension: 10.24" x 7.87" x 3.54"
Weight: 5.55 lbs
Water Rating: IPX7
Touchscreen: Yes
Display Type: WUXGA, IPS; Edge Lit backlight
Display Size: 8.54" x 5.34" x 10.1" diagonal
Display Resolution: 1920 x 1200 pixels
Mounting Options: Bail, flat, or flush
Input: Touchscreen
Polarized Lens Viewability: Yes

Maps & Memory:

Accepts Data Cards: 2 microSD™ cards (on rear of product)
Waypoints: 5,000
Track Points: 50,000
Tracks: 50 saved tracks
Navigation Routes: 100

Sensors:

GPS: Yes
GLONASS: Yes
GALILEO: Yes
BEIDOU: Yes
Has Built-in Receiver: Yes
Receiver: 10 Hz
NMEA 2000 Compatible: Yes
NMEA 0183 Compatible: Yes
Supports WAAS: Yes
Supports Multi-Band, Multi-Constellation GPS: Yes

Chartplotter Features:

Smart Mode Compatible: Yes
AIS: Yes
DSC: Yes
Supports Fusion-Link™ Compatible Radios: Yes
GCV Black Box Sonar Support: Yes
Activecaptain® Compatible: Yes
Supports Voice Commands: Yes
GRID (Garmin Remote Input Device) Compatible: Yes
GRID 20 Compatible: Yes
Wireless Remote Compatible: Yes
Sailing Features: Yes
Spoken Audio Alerts: Yes
Onehelm Support: Yes

Electrical Features:

Power Input: 10 to 32 Vdc
Typical Current Draw at 12Vdc: 2.43A
Maximum Current Draw at 12Vdc: 2.8A
Maximum Power Usage at 10Vdc: 29w

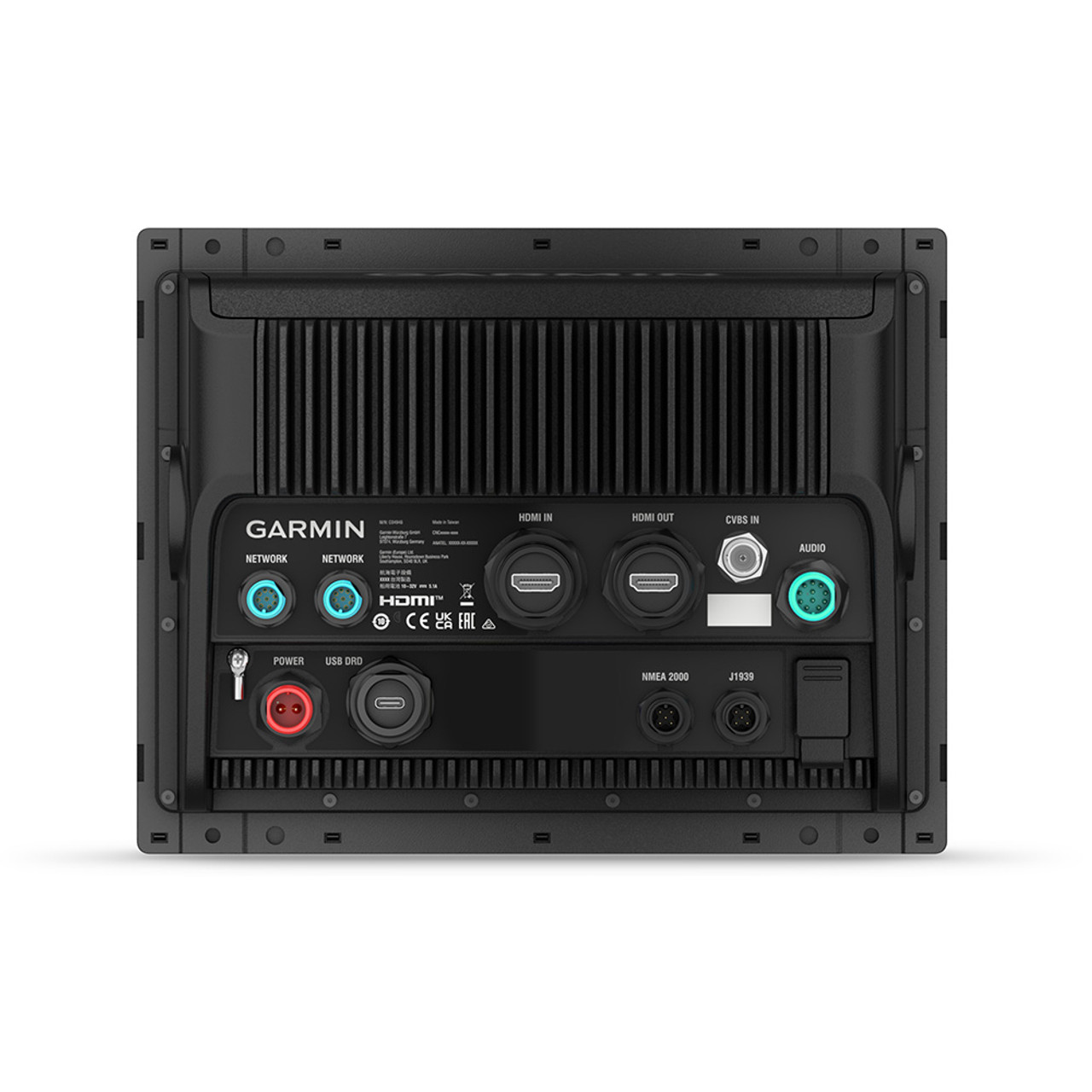

Connections:

NMEA 2000® Ports: 1
NMEA 0183 Input (RX) Ports: 1
NMEA 0183 Output (TX) Ports: 1
Video Input Ports: 1 (BNC composite); 1 HDMI (HDCP compliant)
Video Output Ports: 1 HDMI
J1939 Ports: 1
Garmin Bluenet Networks Ports: 2
USB Ports: yes (1x USB-C)
Bluetooth® Pairing: Yes
ANT® (Connectivity): Yes
Garmin Wi-Fi Network (Local Connection): Yes
Wi-Fi Frequency Bands: 2.4 GHz & 5 GHz
Audio Output: Yes

^{1Auto Guidance+ is for planning purposes only and does not replace safe navigation operations}

Warning WARNING: This product can expose you to chemicals including NICKEL (METALLIC) which is known to the State of California to cause cancer. For more information go to P65Warnings.ca.gov.

Specifications:

Cartography Brand: Garmin Navionics+
Internal/External Antenna: Internal
Screen Size: 10"
Touchscreen: Yes

Owner's Manual (pdf)
Brochure (pdf)

Product Videos

Custom Field

MPN 010-03175-00
