  • Garmin ECHOMAP Ultra 2 126sv w\/o Transducer - Garmin Navionics+ [010-02882-00]
  • Garmin ECHOMAP Ultra 2 126sv w\/o Transducer - Garmin Navionics+ [010-02882-00]

    • Garmin ECHOMAP Ultra 2 126sv w/o Transducer - Garmin Navionics+ [010-02882-00]

    Garmin

    MSRP: $2,899.99
    $2,499.99
    (You save $400.00 )
    (No reviews yet) Write a Review
    SKU:
    BSM-101732
    UPC:
    753759325565
    Width:
    11.00 (in)
    Height:
    8.00 (in)
    Depth:
    16.00 (in)
    MPN:
    010-02882-00
    Adding to cart… category.add_cart_announcement

    Product Description

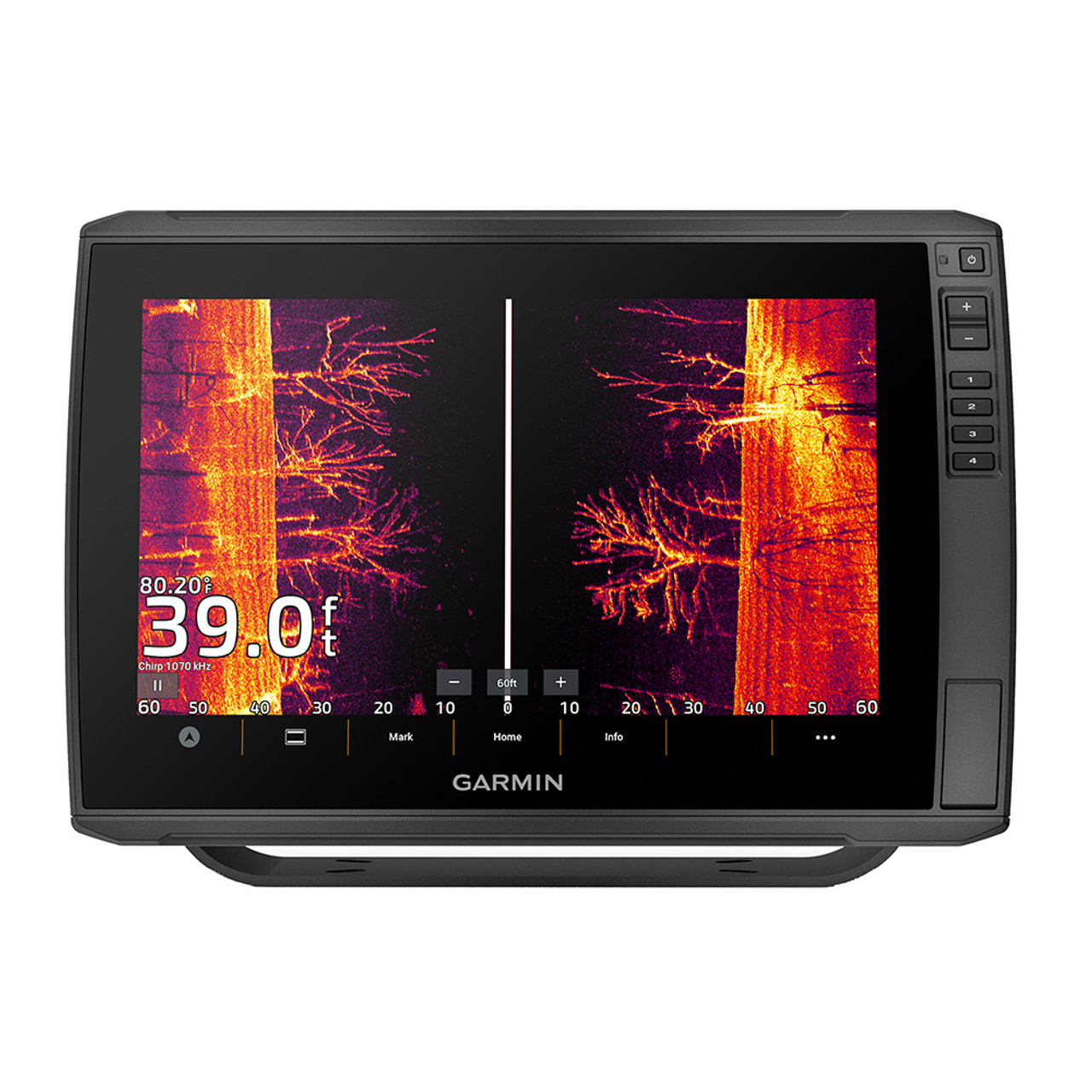

    ECHOMAP™ Ultra 2 126sv without Transducer - Garmin Navionics+

    With big, crisp, sunlight-readable touchscreen displays, these versatile chartplotters put a world of fish-finding capability at the angler's fingertips. This display has built-in Garmin Navionics+™ mapping.

    Features:

    • ECHOMAP™ Ultra 2 126sv with Garmin Navionics+™
    • 12” touchscreen
    • Supports livescope™ sonar, and more
    • Wirelessly network; share sonar, waypoints, and routes.
    • Capture screen recordings to share fish catches
    • Multi-band GPS for improved position accuracy

    Livescope™ Sonar Support

    The ECHOMAP Ultra 2 series supports the full lineup of LiveScope live-scanning sonar products (transducers sold separately).

    Built-in UHD Sonar

    Select models are bundled with a GT56 transducer, which provides Garmin CHIRP traditional sonar and Ultra High-Definition ClearVü™ and SideVü™ scanning sonars for photo-like images of what’s beneath the surface.

    Vivid Color Palettes

    High-contrast, vivid scanning sonar color palettes make it easier than ever to distinguish targets and structures.

    Preloaded Charts

    Experience unparalleled coverage and detail with built-in Garmin Navionics+ mapping, which includes a 1-year subscription for daily updates, depth range shading, and more.

    Premium Map Upgrades

    Bring a fresh new look and feel to the chartplotter with optional Garmin Navionics Vision+™ premium mapping (sold separately), featuring high-resolution relief shading, satellite imagery, and more.

    Wireless Networking

    If users have another compatible ECHOMAP Ultra 2 or ECHOMAP UHD2 chartplotter on the boat, users can wirelessly share information — such as sonar, waypoints, and routes — with them.

    Stay Connected

    Multi-Band GPS

    Get improved position accuracy with multi-band GPS

    NMEA 2000® Network Compatibility

    Connect to heading sensors, autopilots, Fusion-Link™ audio systems, and more.

    ActiveCaptain® App

    Pair with the free smart-device app for software updates, screen recording, Garmin Quickdraw™ Community data, and more.

    Force® Trolling Motor

    Wirelessly connect to a Force trolling motor to navigate to waypoints, draw and follow routes, and more.

    Take It With You

    The quick-disconnect bail mount lets users quickly install and remove the unit.

    In the Box:

    • ECHOMAP Ultra 126sv with optional Garmin Navionics+
    • Power/data cable
    • Bail mount with quick-release cradle
    • Protective sun cover
    • 8-pin transducer to 12-pin sounder adapter cable
    • Hardware
    • Documentation

    Specifications

    General:

    • Dimension: 13.4" x 9.0" x 3.9" (34.1 x 22.9 x 9.8 cm)
    • Weight: 5.5 lbs (2.5 kg)
    • Waterproof: IPX7
    • Touchscreen: Yes
    • Display Type: WXGA, IPS
    • Display Size: 10.3" x 6.4"; 12.1" diagonal (26.1 x 16.3 cm; 30.7 cm diagonal)
    • Display Resolution: 1280 x 800 pixels
    • Mounting Options: Bail or flush
    • Input: Touchscreen with Keyed Assist

    Maps & Memory:

    • Accepts Data Cards: 2 microSD cards
    • Waypoints: 5000
    • Track Points: 50,000
    • Tracks: 50 saved tracks
    • Navigation Routes: 100

    Sensors:

    • GPS: Yes
    • GLONASS: Yes
    • Galileo: Yes
    • BeiDou: Yes
    • Has Built-In Receiver: Yes
    • Receiver: 10 Hz
    • NMEA 2000 Compatible: Yes
    • NMEA 0183 Compatible: Yes
    • Supports WAAS: Yes
    • Supports Multi-Band, Multi-Constellation GPS: Yes

    Built-In Maps:

    • Built-In Auto Guidance+: Yes
    • Garmin Navionics+ Inland & Coastal: Yes (see Additional)
    • Tide Tables: Yes (see Additional)

    Optional Map Support:

    • Garmin Navionics+™: Yes
    • Garmin Navionics+ Vision+™: Yes
    • TOPO 100k: Yes
    • Standard Mapping: Yes
    • Garmin Quickdraw Contours: Yes

    Chartplotter Features:

    • AIS: Yes
    • DSC: Yes
    • Supports Fusion-Link™ Compatible Radios: Yes
    • ActiveCaptain® Compatible: Yes
    • Sailing Features: Yes

    Electrical Features:

    • Power Input: 9 to 18 VDC
    • Typical Current Draw at 12 VDC: 2.5 A
    • Maximum Current Draw at 12 VDC: 5.0 A
    • Maximum Power Usage at 10 VDC: 36 W

    Sonar Features:

    • Displays Sonar: Yes
    • Power Output: 600 W
    • Traditional Sonar (Dual Frequency/Beam): Built-in (Single Channel Chirp, 70/83/200 Khz, L, M, H Chirp)
    • ClearVü: Built-in 260/455/800/1000/1200 kHz
    • SideVü: Built-in 260/455/800/1000/1200 kHz
    • Panoptix™ Sonar: Yes
    • Livescope: Yes

    Connections:

    • NMEA 2000® Ports: 1
    • Garmin Marine Network Ports: 2 (Large Connector)
    • 12-Pin Transducer Ports: 12-Pin Scanning Sonar
    • ANT+ (Connectivity): Yes
    • Garmin Wi-Fi Network (Local Connection): Yes

    WarningWARNING: This product can expose you to chemicals including NICKEL (METALLIC) which is known to the State of California to cause cancer. For more information go to P65Warnings.ca.gov.

    Specifications:

    • Screen Size: 12"
    • Touchscreen: Yes
    • Transducer Included: No
    • Box Dimensions: 8"H x 11"W x 16"L WT: 11.9 lbs
    • UPC: 753759325565

    Owner's Manual (pdf)

    Product Videos

    Custom Field

    MPN 010-02882-00
